Intel BHS Server Mainboard （G7）
Craft show
| Layers | 18L |
| Board thickness | 2.6±0.22mm |
| Material | Synamic-6GX |
| Aspect ratio | 13:1 |
| Impedance | ±8% |
| Insertion loss | Insertion loss control 16GHz，-1.01db/inch |

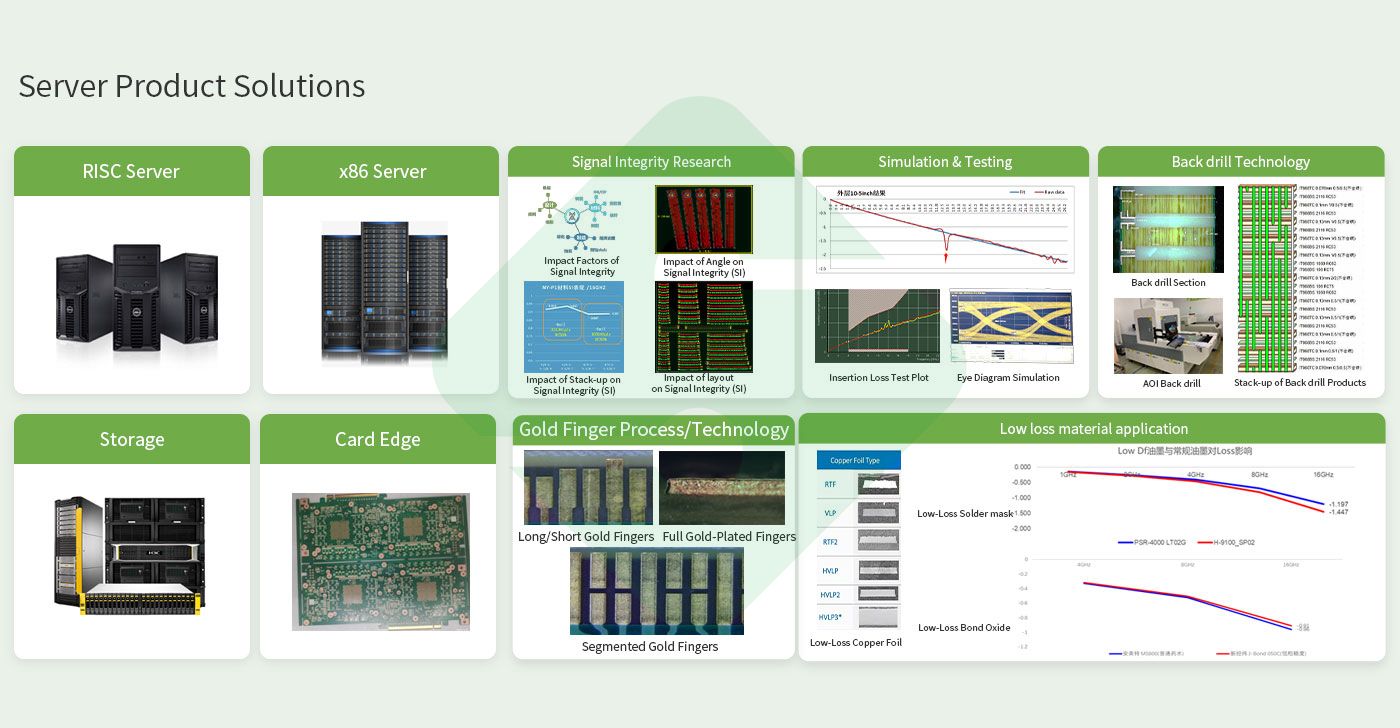

With the development of big data, cloud computing and 5G communication, there is a huge potential in the server/storage industry. The servers are featured with high-speed CPU computing ability, long-term reliable operation, strong I/O external data handling ability and better extensibility. Suntak Technology is committed to providing high-speed boards and high multi-layer boards with the high reliability, high stability and high fault tolerance ability required for the server quality.
Shenzhen Plant is engaged in the R&D, production and sales of high multi-layer electronic circuits, and the products are mainly applied in communication, servers, medical treatment, aviation and other high-tech fields.
Craft show
| Layers | 18L |
| Board thickness | 2.6±0.22mm |
| Material | Synamic-6GX |
| Aspect ratio | 13:1 |
| Impedance | ±8% |
| Insertion loss | Insertion loss control 16GHz，-1.01db/inch |
Craft show
| Layers | 16L |
| Board thickness | 2.36±0.22mm |
| Material | IT968G |
| Aspect ratio | 11.5:1 |
| Impedance | 32 groups |
| Back drilling | 6 groups |
| Hole-to-line | 0.175mm |
Craft show
| Layers | 28L |
| Board thickness | 2.75±0.25mm |
| Material | PANASONIC R5785GN |
| Aspect ratio | 9.7: 1 |
| Impedance | 63 groups |
| Back drilling | 13 groups |
| Hole-to-line | 0.18mm |
Craft show
| Layers | 10L |
| Board thickness | 1.53±0.15mm |
| Material | IT170GRA1 |
| Impedance | 15 |
| Aspect ratio | 6.1:1 |
| Hole-to-line | 0.175mm |

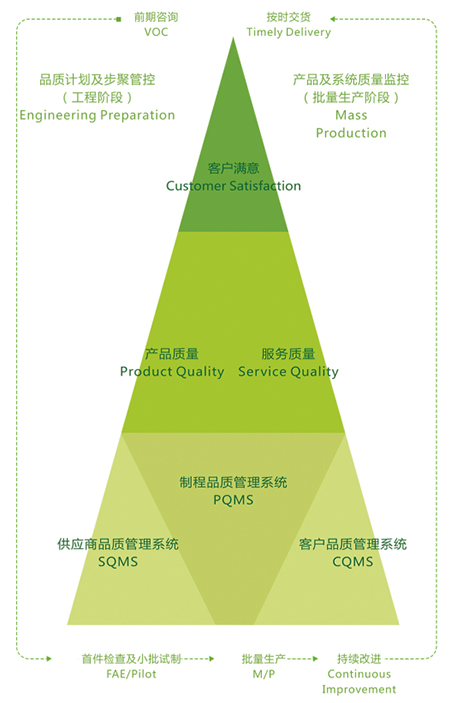

We use raw materials from world famous brands, have established incoming material inspection regulations that comply with international and customer standards, constantly trace and promote supplier quality improvement activities, and build and maintain strong cooperation with suppliers.
Quality products are made, not tested. We have standardized production process and detailed operation instructions for each process of the production line to ensure that the operation specifications and operation standards are correctly implemented.
We strictly check and control the shipment quality according to the international standards and customer standards, timely follow up the product quality performance after shipment, and take quick and effective improvement actions on the customer
Responsible for managing the supplier and incoming materials
Responsible for promoting all systems of the company as well as the maintenance and the import of new customers
Responsible for the first article inspection of the process, the patrol inspection, and taking the lead in improving process abnormality and managing defective products
Responsible for monitoring the solution in the production line and the reliability of products
Responsible for the inspection before delivery
Responsible for after-sales service
Shenzhen Suntak products are mainly high layer, used in communication, server, medical, aviation/aerospace and other fields
